A site plan is a clean drawing. The ground is a messy place. On paper, every line is straight and every grade is smooth. Out on the lot, there’s an old pipe, a soft slope and a fence that sits three feet off. Construction staking is how you bridge that gap. A survey crew takes the plan and marks it out on the real dirt. Those stakes show where the design meets the site. Get them set right, and problems show up early, while they’re still cheap to fix. Ignore this step, and the ground will find your mistakes for you.

When the Planned Layout Meets What Is Already on the Site

Plans get drawn from surveys, maps and records. Those sources are good, but they age. A pipe may have moved. A neighbor may have built a shed near the line. The real site can drift from what the plan shows.

Look at what a crew often meets on the ground. Old foundations and buried slabs. Live utilities that aren’t quite where the map says. Drive aisles, curbs and drainage ditches that steer the water. Slopes that run steeper than the plan hints.

These conditions matter the moment you mark a building. A planned corner might land on an old footing. A driveway might cross a drainage path. When the stakes hit these spots, the conflict shows up in the open. That’s the right time to catch it.

Access can surprise you too. A road shown on the plan may be blocked by a ditch or a locked gate. Materials still have to reach the work zone. If the way in is tight, that shapes how the site gets built. Staking brings these access issues into view before crews show up.

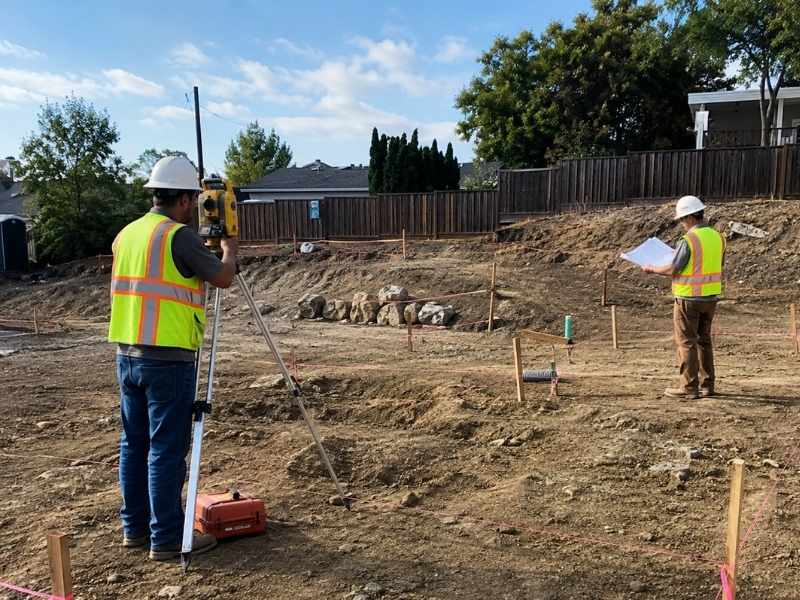

How Construction Staking Turns Design Points Into Field Locations

Staking is how design becomes something you can see and touch. The crew starts from the plan coordinates. They tie those to control points already set on the site. Then they place stakes where the design says things go.

Building corners get marked first. Each corner ties to a planned position on the drawing. The crew adds offset stakes a set distance away, so the marks survive the digging. They lay out grid lines that guide columns and walls. Other key points get staked too, like curbs and pipe runs.

Each stake is a link between paper and place. It says the plan wants this right here. When the whole layout is staked, the team can walk the site and read it. The design stops being lines on a screen. It stands on the real ground.

Grades get staked as well as corners. A crew can mark cut and fill depths right on the stakes. That tells the operator how much dirt to move at each spot. The numbers come straight from the plan. So the machine work stays tied to the design.

Staking Problems That Can Appear Before Excavation

Staking often shakes loose problems no one saw on paper. A point may land in the wrong place from a plan error. A number on one sheet may fight a number on another. A hidden feature may sit right where a wall should go.

Say two plan sheets list different widths for the same building. On paper, no one noticed. On the ground, the stakes won’t line up. That mismatch is a red flag the crew can raise right away.

Finding these before excavation is a gift of time. The dirt hasn’t moved. No concrete is poured. The team can check the plans and fix the numbers while it’s still easy. A stake is cheap to pull and reset. A dug footing is not.

Utility conflicts are a common catch. A staked wall may land right on top of a live water line. On paper the two never crossed, since they lived on separate sheets. On the ground, the stakes put them in the same place. That early warning can save a broken line and a flooded pit.

Not every problem is a plan error. Sometimes the site changed after the survey was done. A storm may have cut a new gully. A crew may have dumped spoil in the wrong spot. Staking catches the site as it is today, not as it was months ago.

When Field Conditions Do Not Match the Construction Plans

Sometimes the site and the plan just don’t agree. The crew finds a real gap, not a small rounding difference. Maybe a utility sits where the building belongs. Maybe the grade is far off the planned level.

The right move is to document, not to guess. The crew records what they found with measurements and notes. They mark the spot clearly. Then they send the issue to the project team for a decision. Photos help the office see it fast.

There’s a line a good surveyor won’t cross. They don’t redesign the project in the field. Moving a wall or changing a grade is the designer’s call. The engineer or architect owns those choices. The surveyor reports the conflict, then stakes the fix once the right people approve it.

Good records protect everyone later. A written note and a photo show what the site really looked like. If a dispute comes up, that proof settles it fast. It also gives the designer a clear picture to work from. Guessing over the phone helps no one.

What Developers Should Verify Before Construction Moves Forward

You don’t set stakes yourself. You do make sure the right checks happened before crews dig. Run through a short list after staking and before excavation.

• Confirm the crew staked from the latest plan set, not an old revision.
• Check that the layout ties to known control points on the site.
• Make sure the key spots are staked, like corners, grid lines and utilities.
• Review any field conflicts the crew flagged, and confirm each one has an answer.
• Close out open questions with the designer before the machines roll in.

One more habit pays off. Get the crew’s staking notes and any conflict reports in writing. Read them before you approve the dig. A quick review can catch a problem the field crew already spotted. That paper trail keeps the whole team on the same page.

Timing carries the whole point. Layout is cheap to fix before the first cut. Once excavation starts, changes cost real time and money. Once footings are poured, they cost even more. Walk the staked site early. Clear every conflict first. Then let construction move with a plan that matches the ground.
